Home > Material > N-600 Zero thermal expansion ceramics

N-600 Zero thermal expansion ceramics

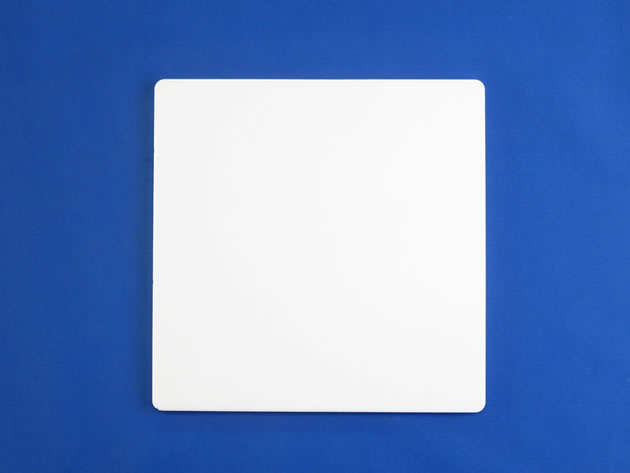

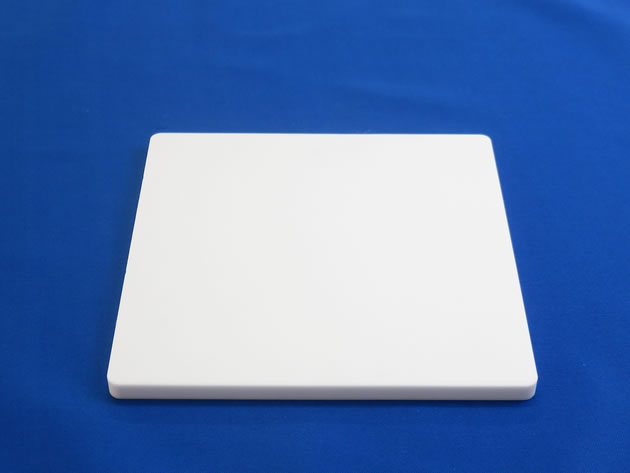

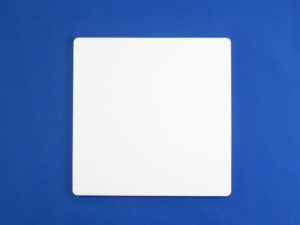

Zero thermal expansion ceramics Zero thermal expansion ceramics

Nishimura have developed new ceramic material which has almost zero thermal expansion in room temperature.

Compare with other type of low thermal expansion ceramics, N-600 has outstanding performance as shown below.

Features

Zero thermal expansion in room temperature(22-23℃)

Light weight and high strength

Mirror polishing available

Zero water absorption

Low thermal conductivity

Applications examples

Semiconductor manufacturing device

Parts for inspection device

Standard gauge for proofreading

Parts for machine used in extreme temperature

Alternative of Super Inver

Properties

Material name Cordierite
Nishimura No. N-600
Main components 2MgO・2Al2O3・5SiO2



Color White
Bulk density cm³/g  2.5
Water absorption % 0%
Mechanical properties Vickers hardness GPa 9.0
Bending strength MPa 150
Young modules GPa 140
Electric properties Volume resistivity Ω・cm 1014
Electric constant 1MHz   4.9
Electric loss tangent 1MHz   9.0×10-4
Dielectric strength kV/mm 19.1
Thermal properties Thermal expansion coefficient 10-6/℃ 1.28(500~600℃)
0.1 (22~23℃)
Thermal conductivity W/m・K 4.75(30℃)
