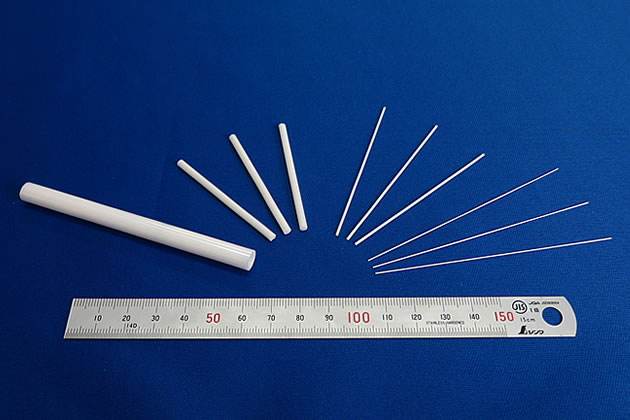

We produce a zirconia ceramic pin/shaft.
- Bending strength of the Nishimura’s zirconia pin/shaft is 3~6 times stronger than an alumina pin/shaft
- From raw material to finishing(polishing), All of steps are produced in our Hong Kongese factory (Made in Hong Kong)
- We don’t supply defect parts which support by strict quality control.
- Full order made. Feel free to ask us even if it is small order.
- We can fit to any request even if it’s strict tolerance or surface roughness.
Usefulness
- pin gauging
- positioning pin
- piston
- plunger
- shaft
- machine parts
- high intensity pin
- antifriction parts

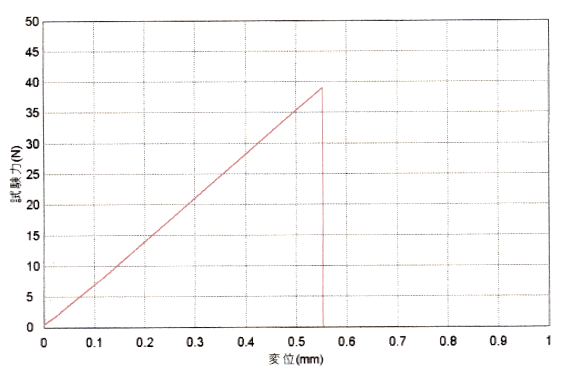

Bending strength of Zirconia small pin（φ1.0mm）
| Diameter | 1.0000mm | |
| Max. load | 39.0871N | Calculate in all of area |
| Bending strength | 1990.69MPa | Calculate in al of area |
| Type of test | ：Three point bending |
| Shape of test piece | ：a round bar(φ1.0mm polished） |
| fulcrum distance | ：20mm |
